make ready system for counter dies

Pin positioning system PRO GRAVUR for counter dies

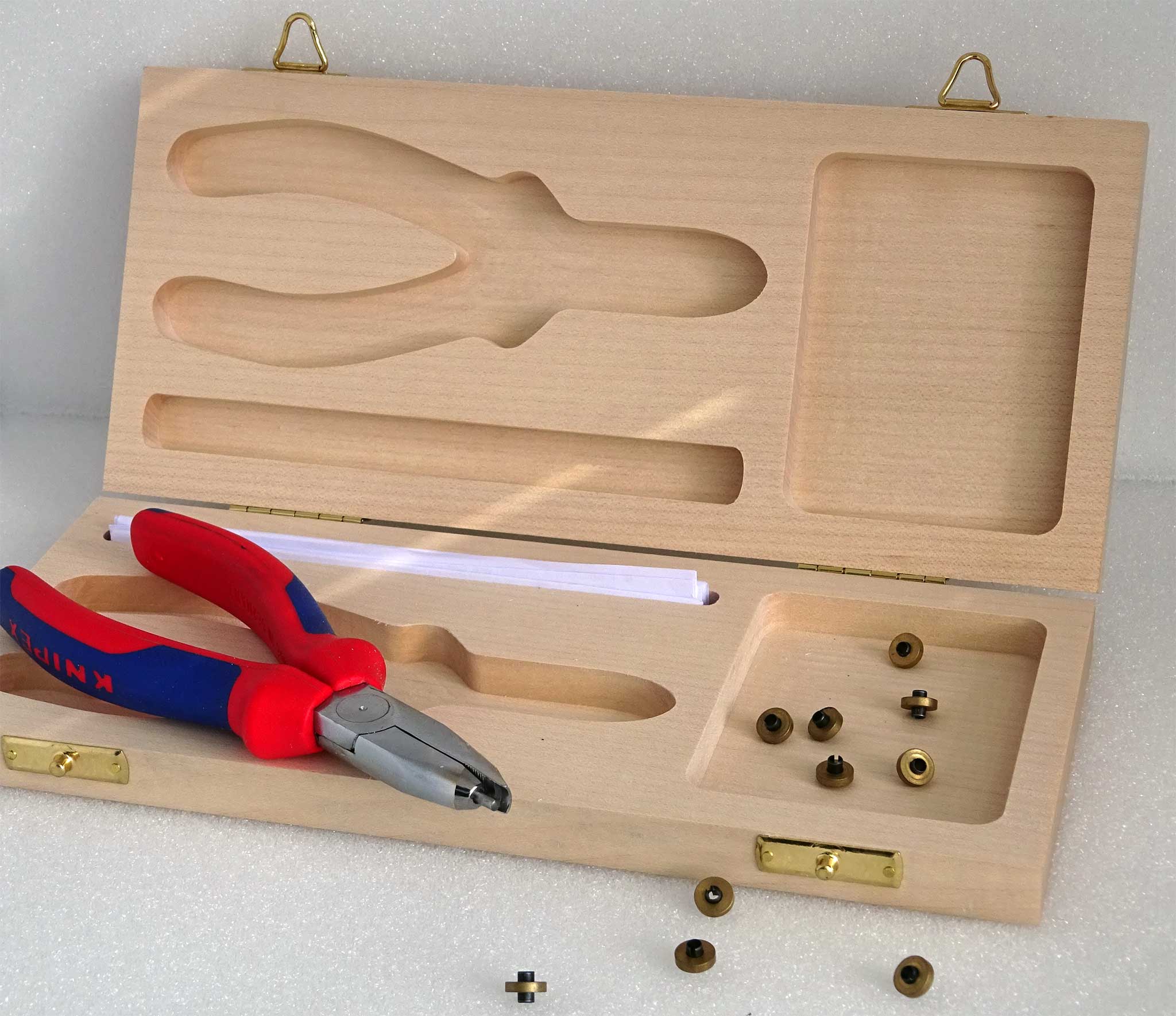

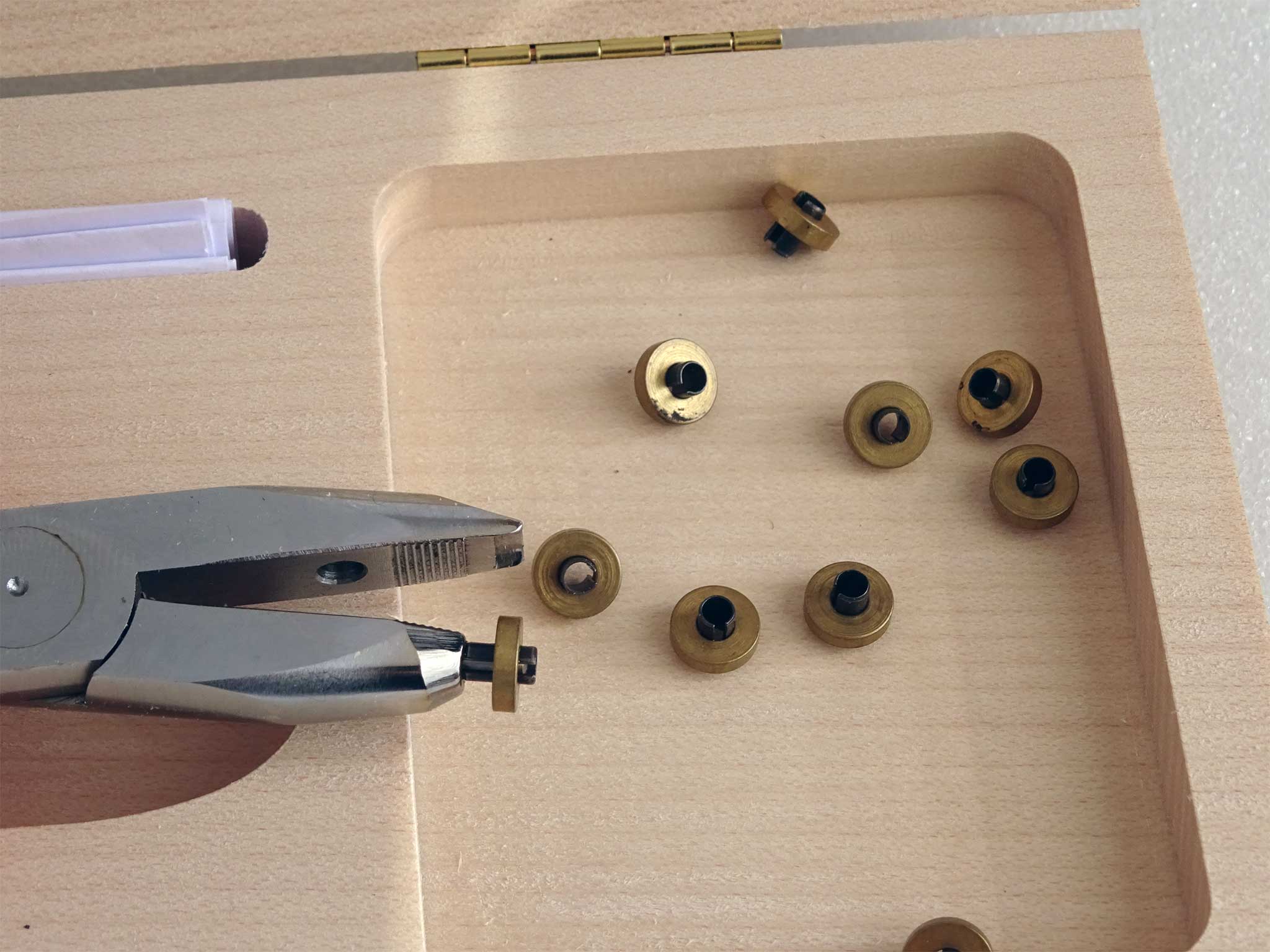

Set for counter die positioning. Wooden box with pins and nipper.

Please always use all the available pin-position holes for a better fitting of the counter die.

How to apply:

Make first the correct positioning of the print job with the die

  • Put double-face scotch on backside of the counter-die
  • Place the pins in the counter die
  • Place the pin-equipped counter-die into the holes of the die
  • Take out the pins with the nipper or an equivalent tool and then print
  • Go on pressure

Instruction manual

Gallery



1
2
3
