printing cylinders

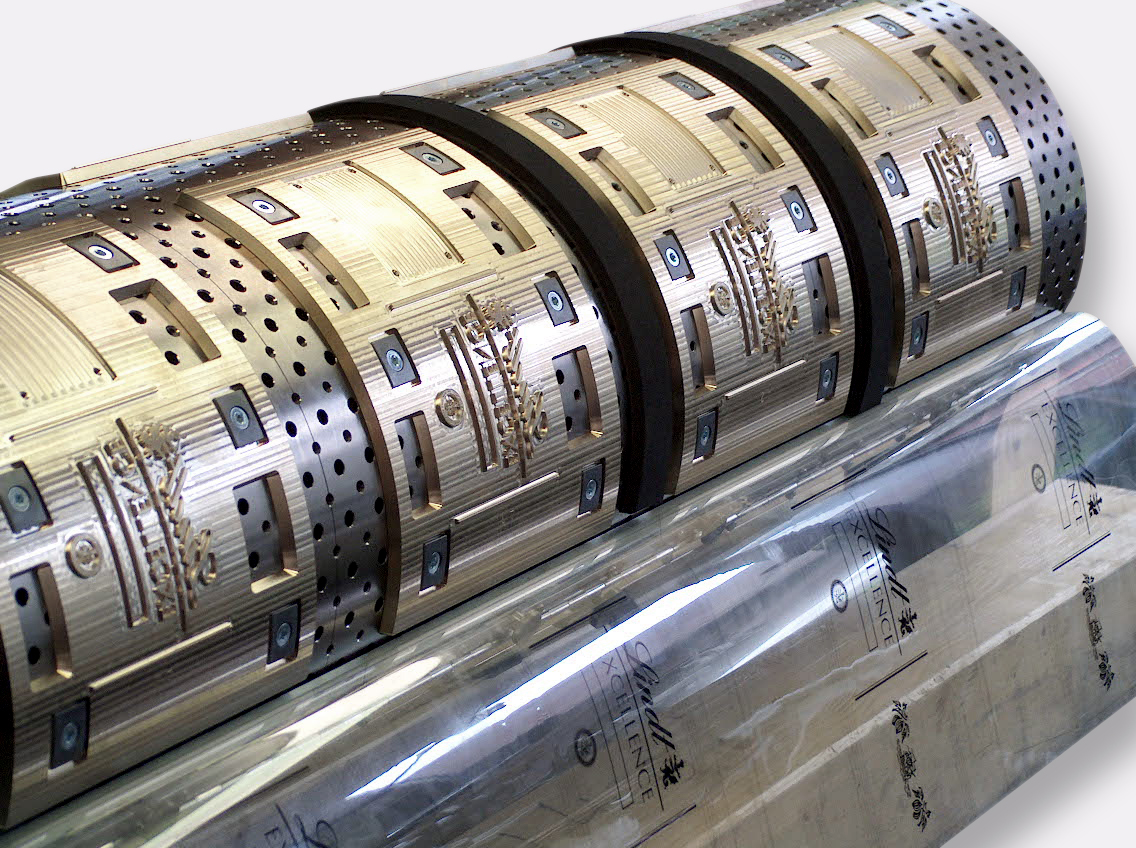

Hot foil printing- and embossing- cylinders

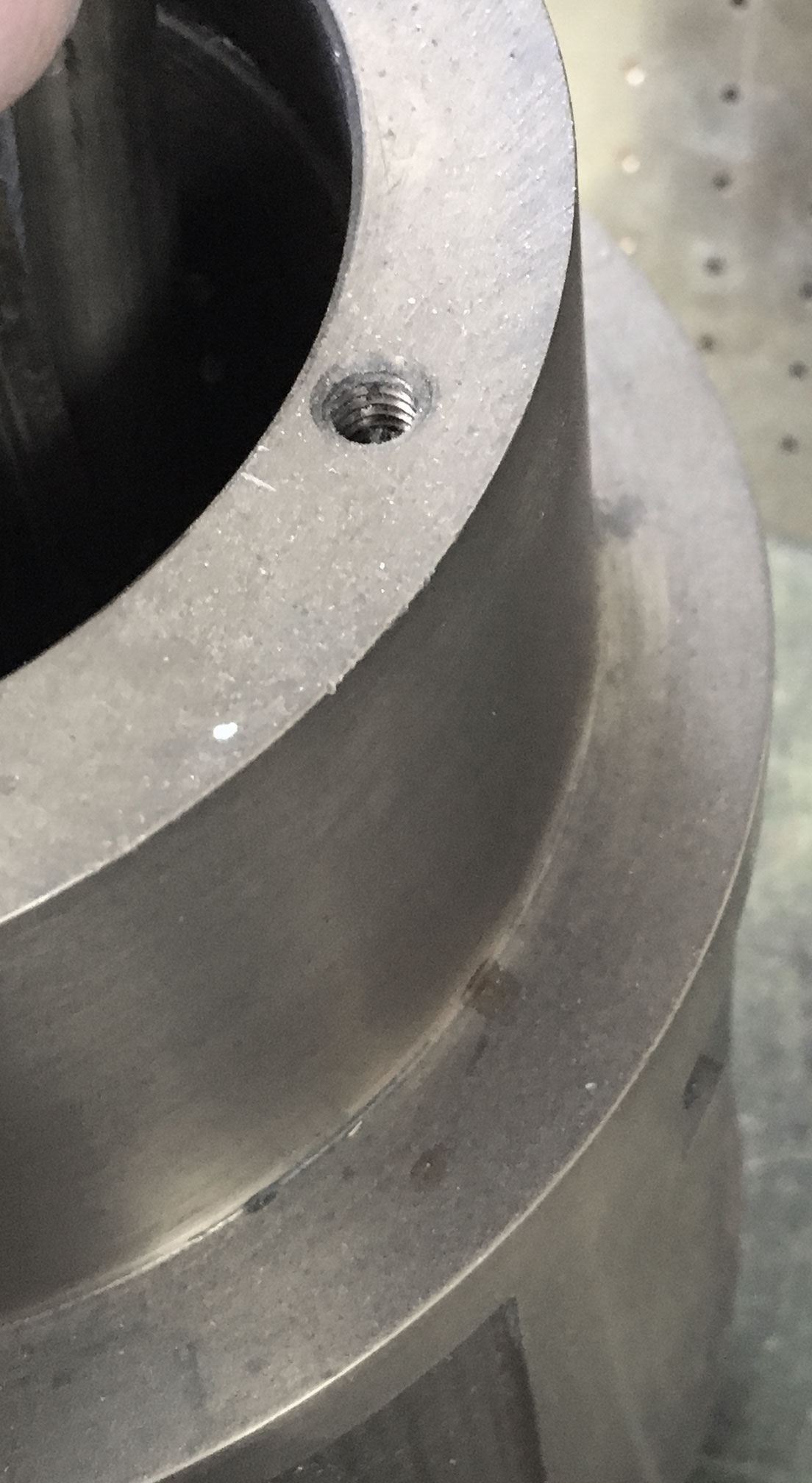

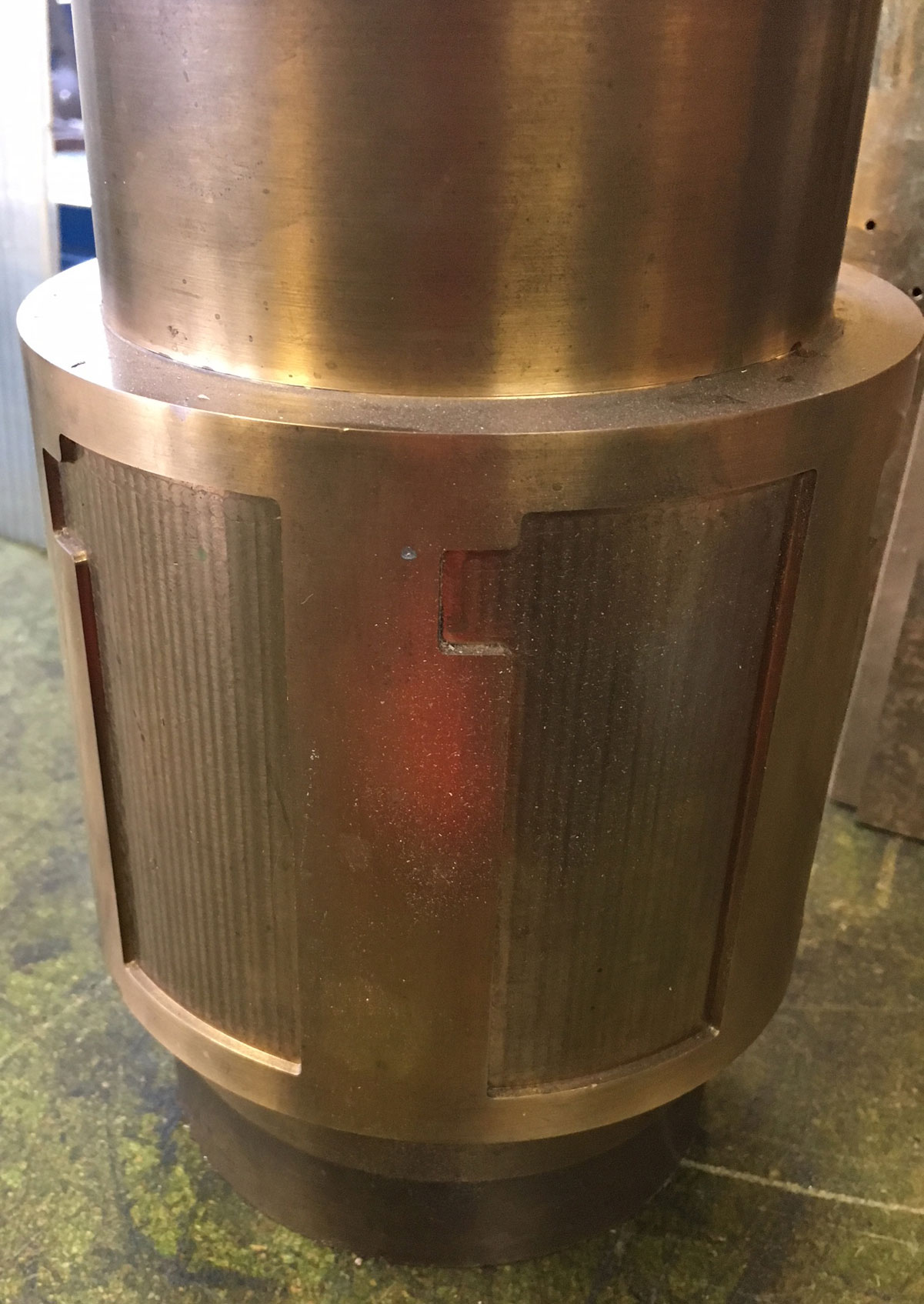

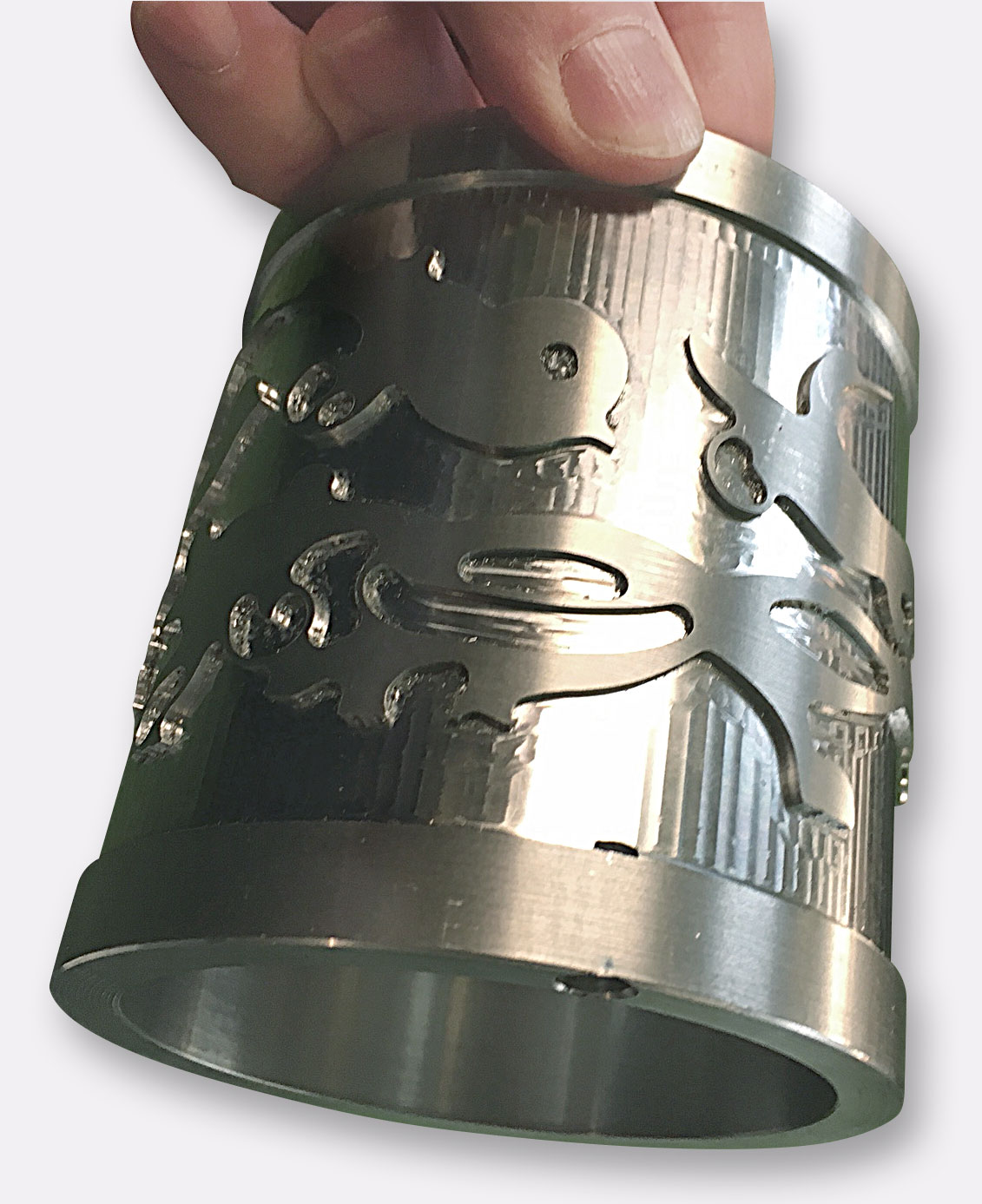

Engraved brass cylinders for hot-foil stamping or embossing

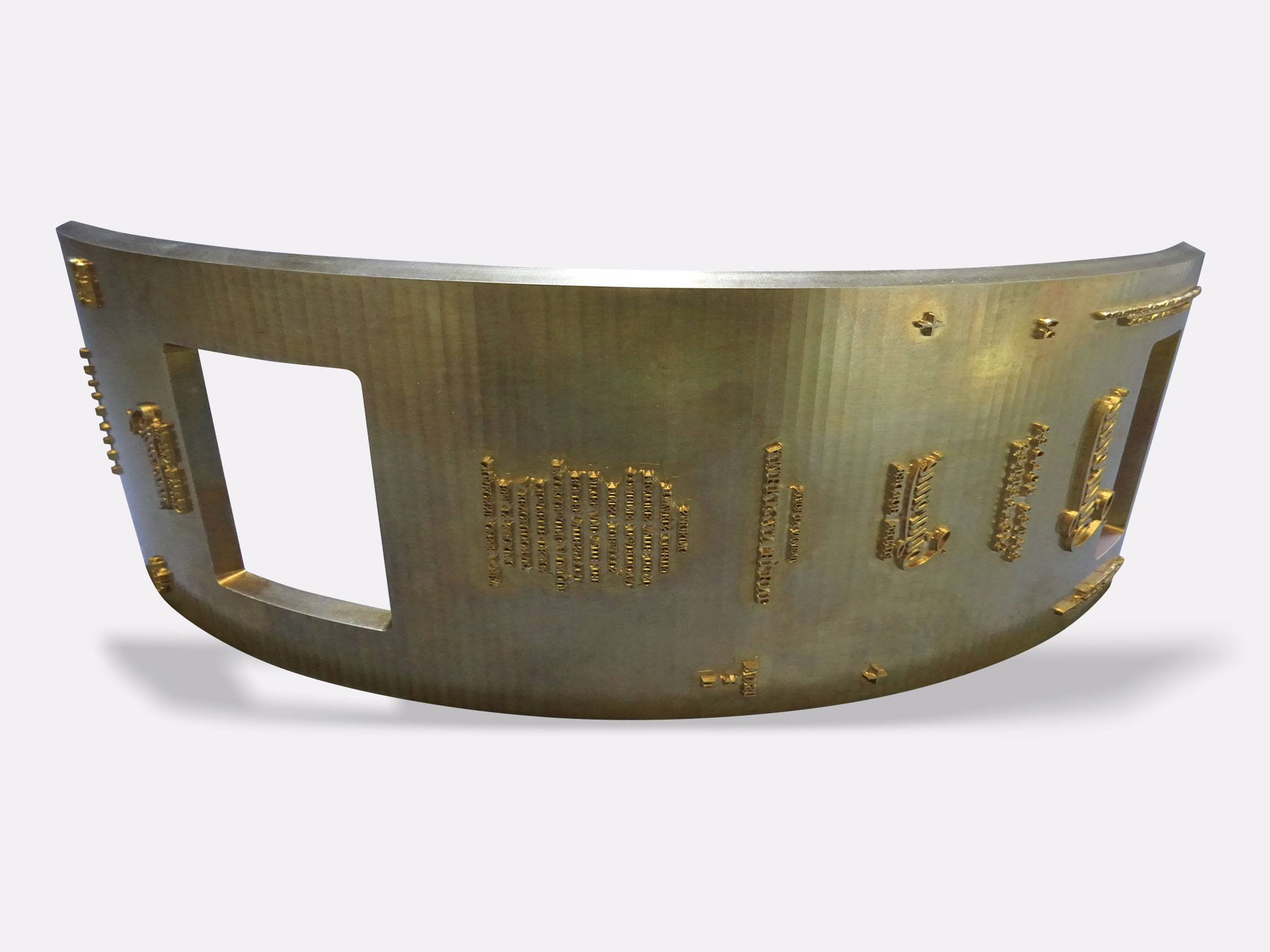

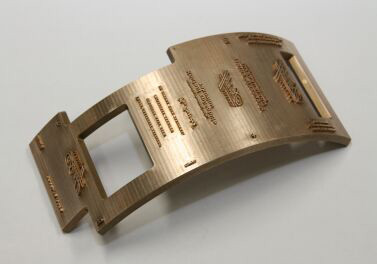

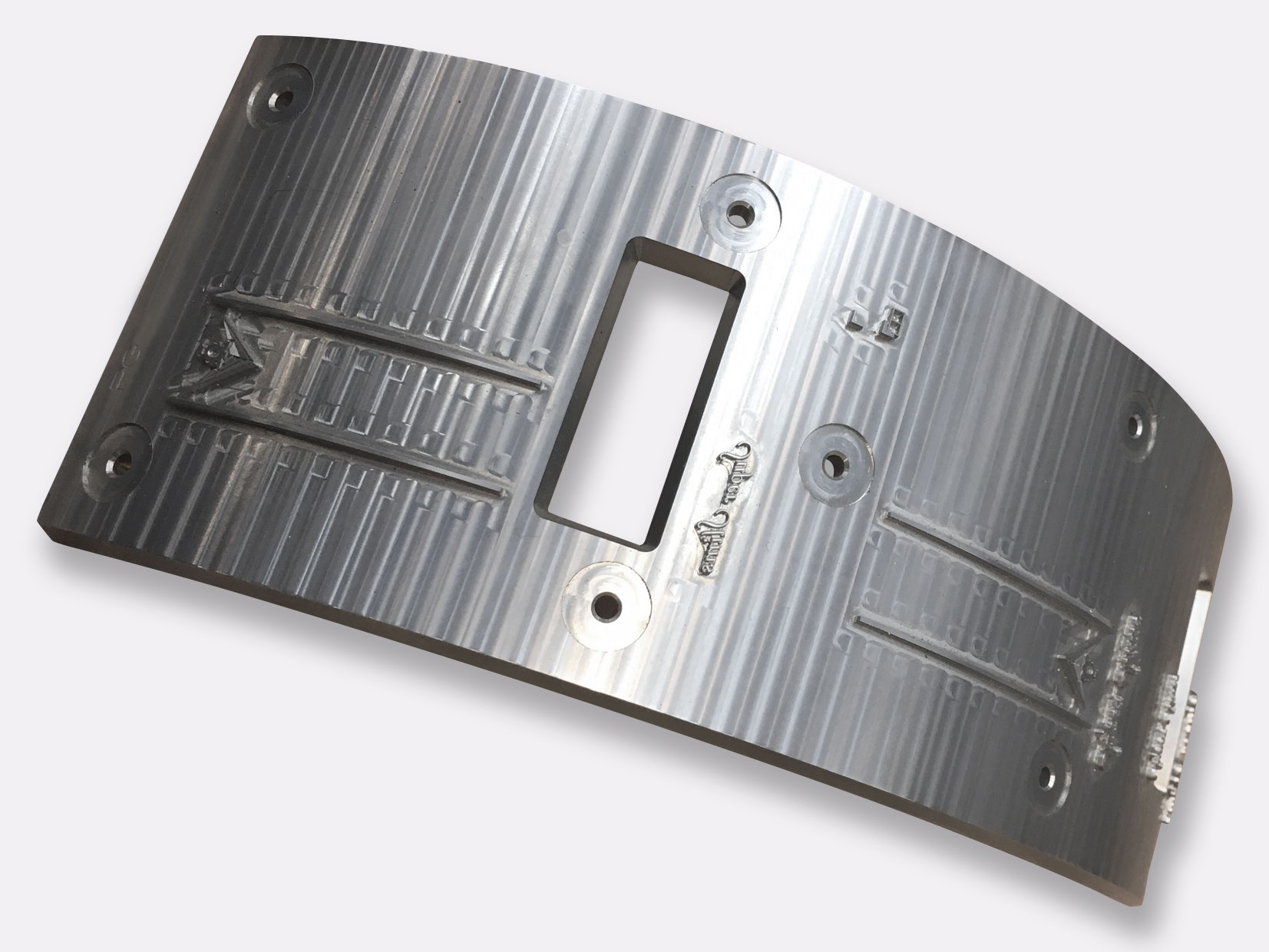

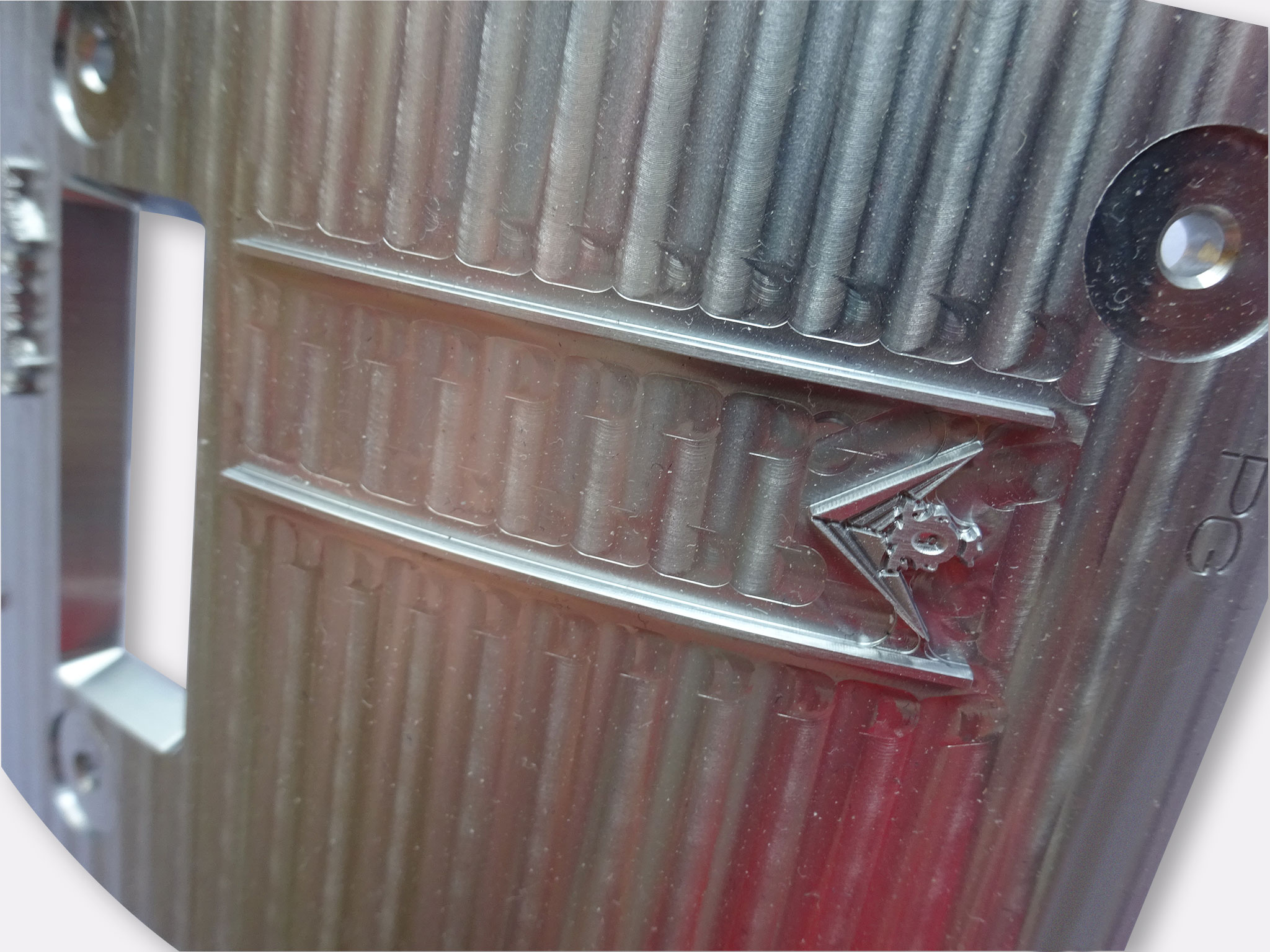

Plates for cylinder applications

Cylinders for the most known types of machines, such as Steuer Foil-Jet, Kopak, Mark Andy, Gallus. Manufacturing of the cylinder, following your technical drawings.

Max. diameter for engraving 270mm.

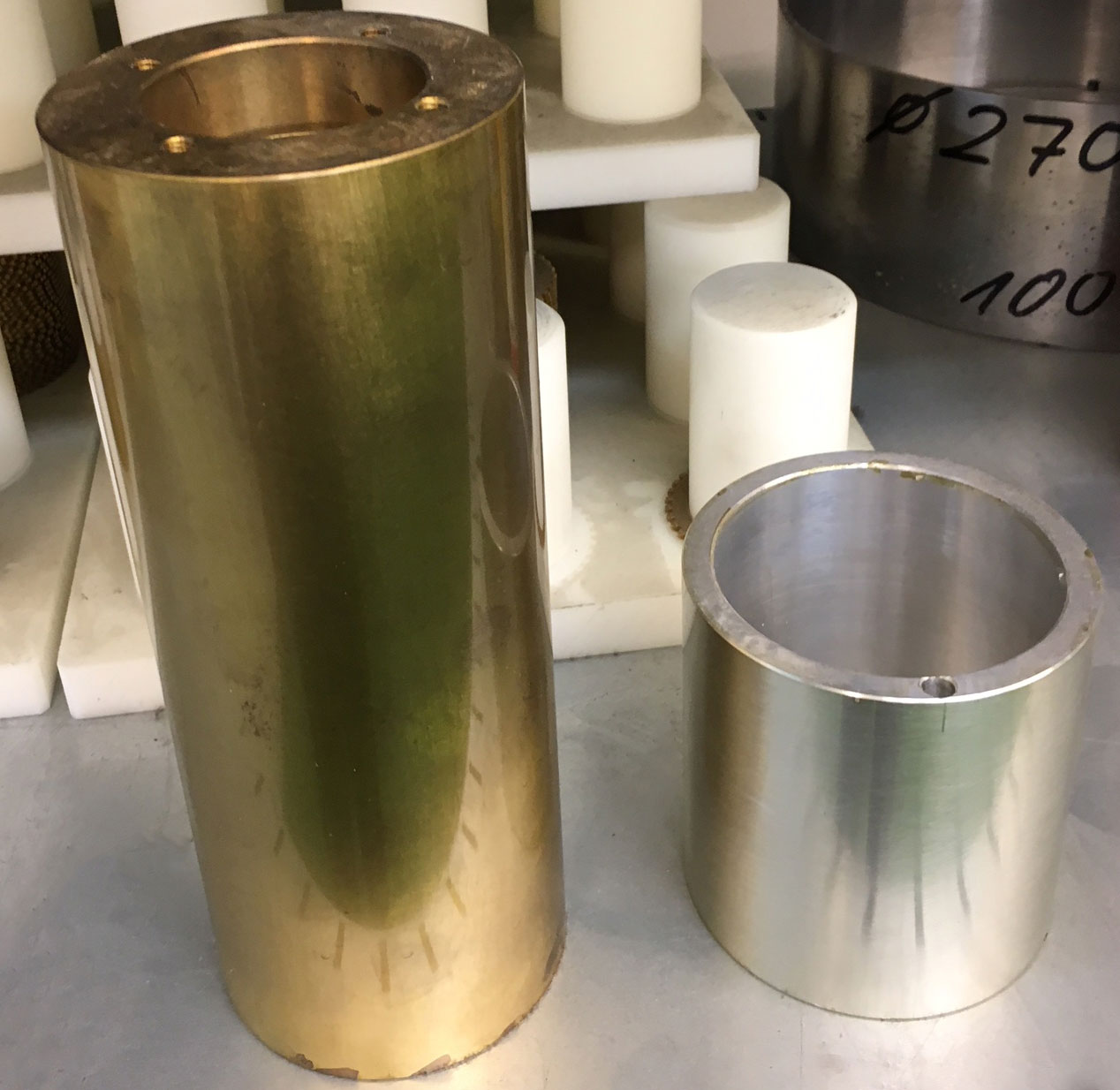

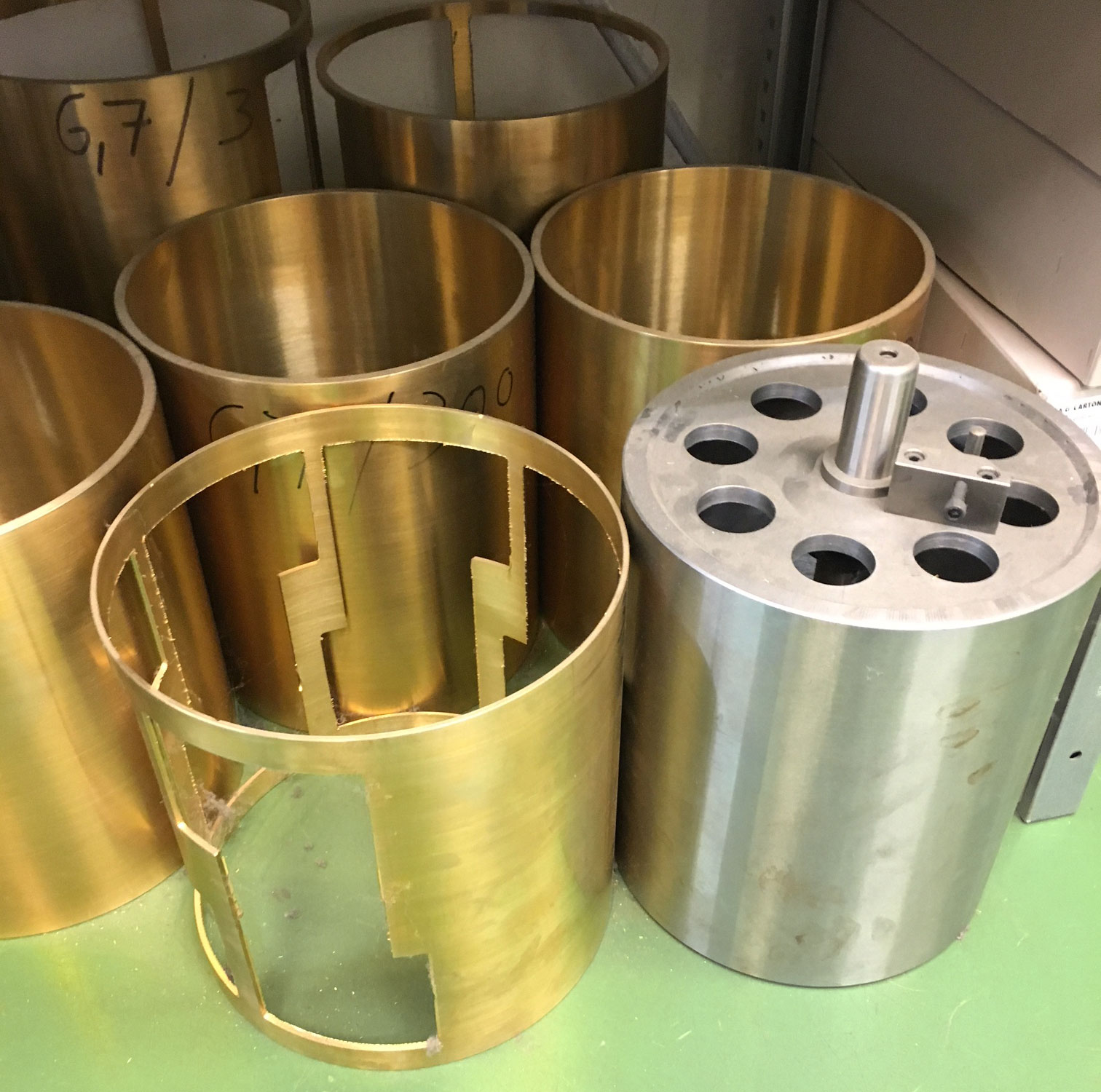

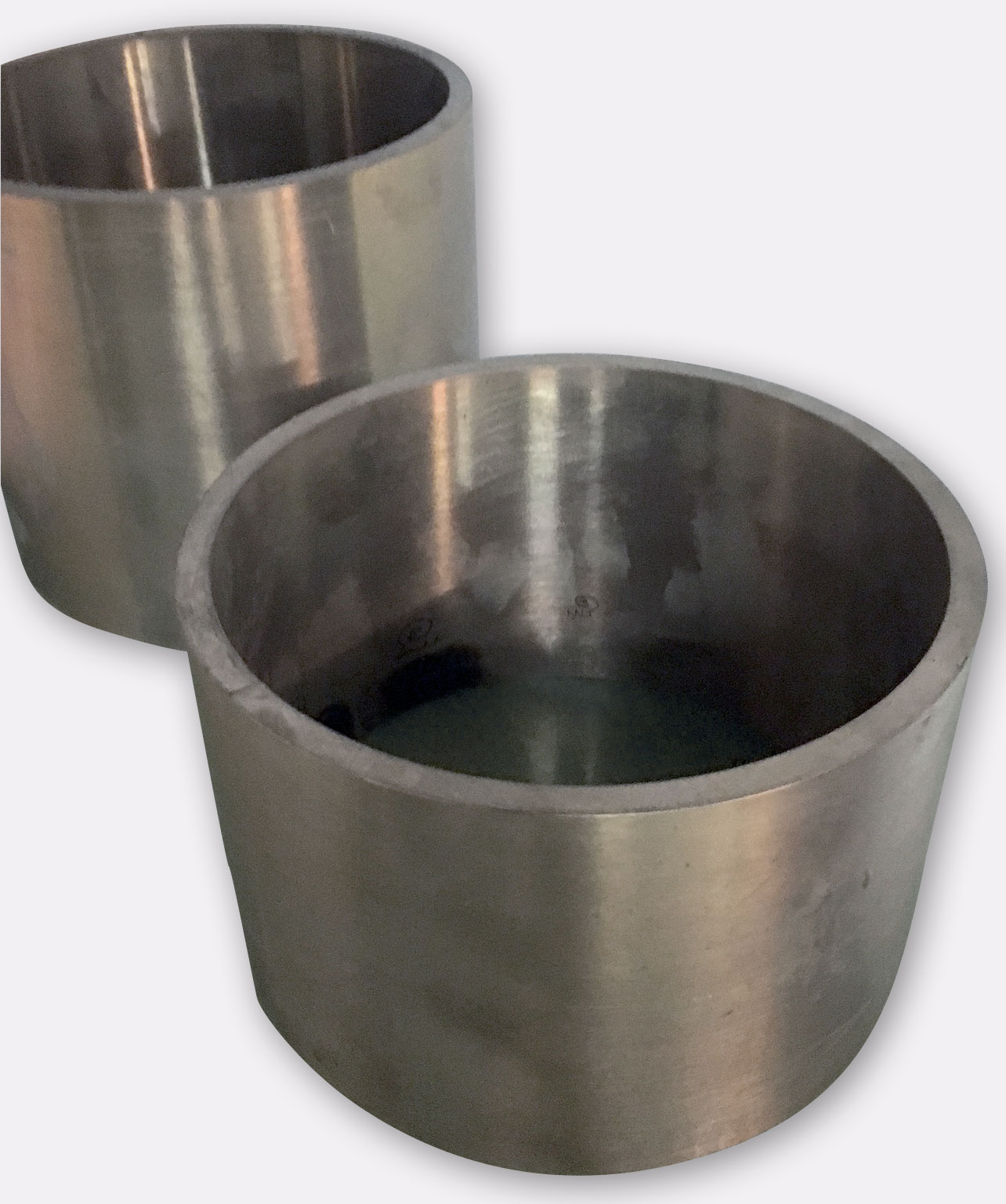

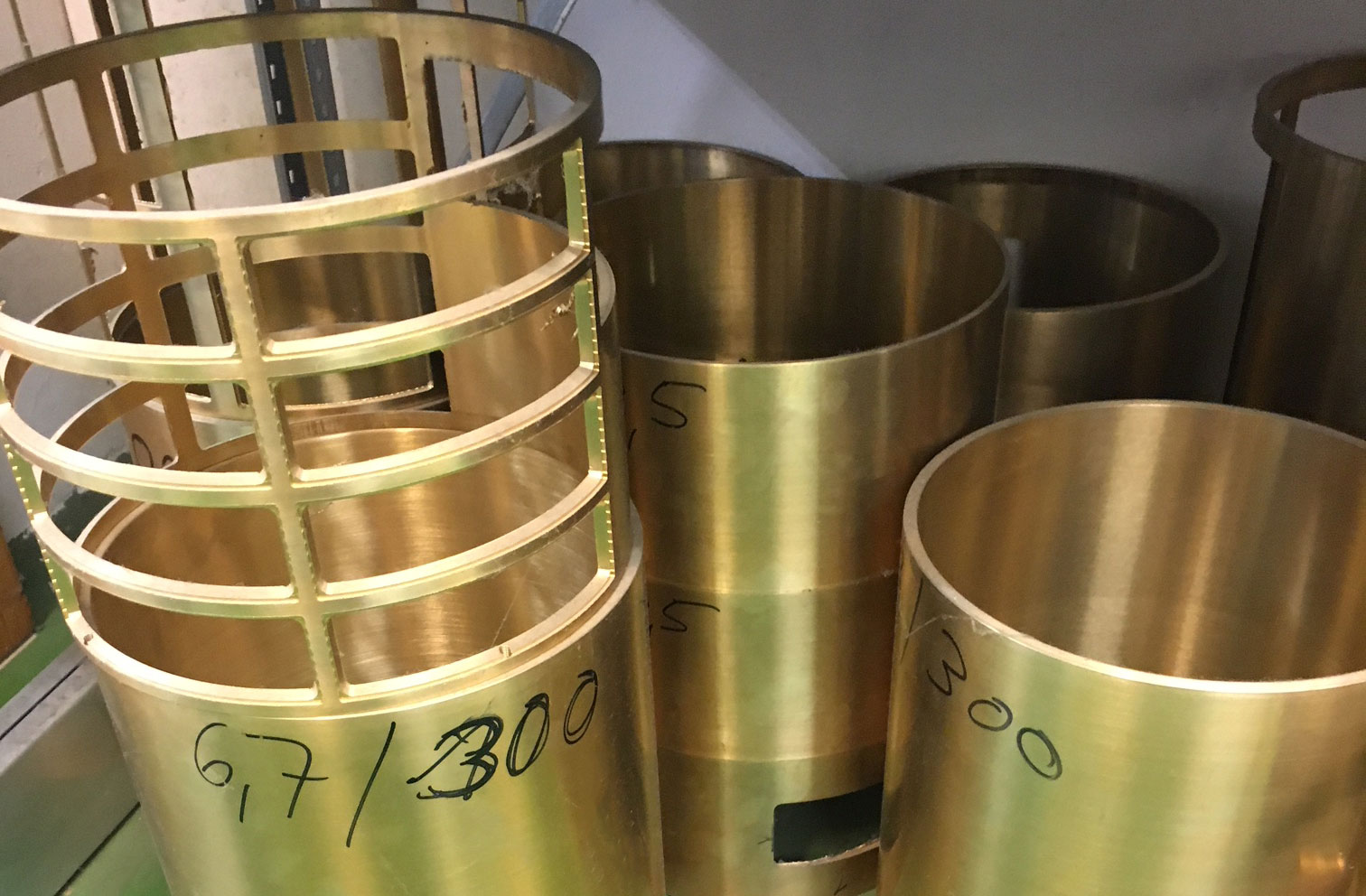

Cylinders can be delivered in brass also in steel or in aluminium.
Plates for cylinders in magnesium and brass.

Possibility to make text insert dies for Steuer foil-jet. Mounting of Foil-jet dies on printing cylinder in right position of the printing sheet and with the necessary compensation of the heat extension.

Please tell us the printing temperature. This is influencing the compensation parameter.

We need to know the development way of the printing. For some machines we need to know the driving side and the operating side.

Gallery



1
2
3
4
5
6
7
8
9
10
11
12
