foil-embossing dies

Finishing of printed matter with foil-embossing dies, foil and embossing in one run, combined with flat elements or structure elements

Different materials:

Magnesium dies, a low cost etched die for small printing quantities and materials representing no handling problems.First etching of the die and then engraving of the embossing elements.

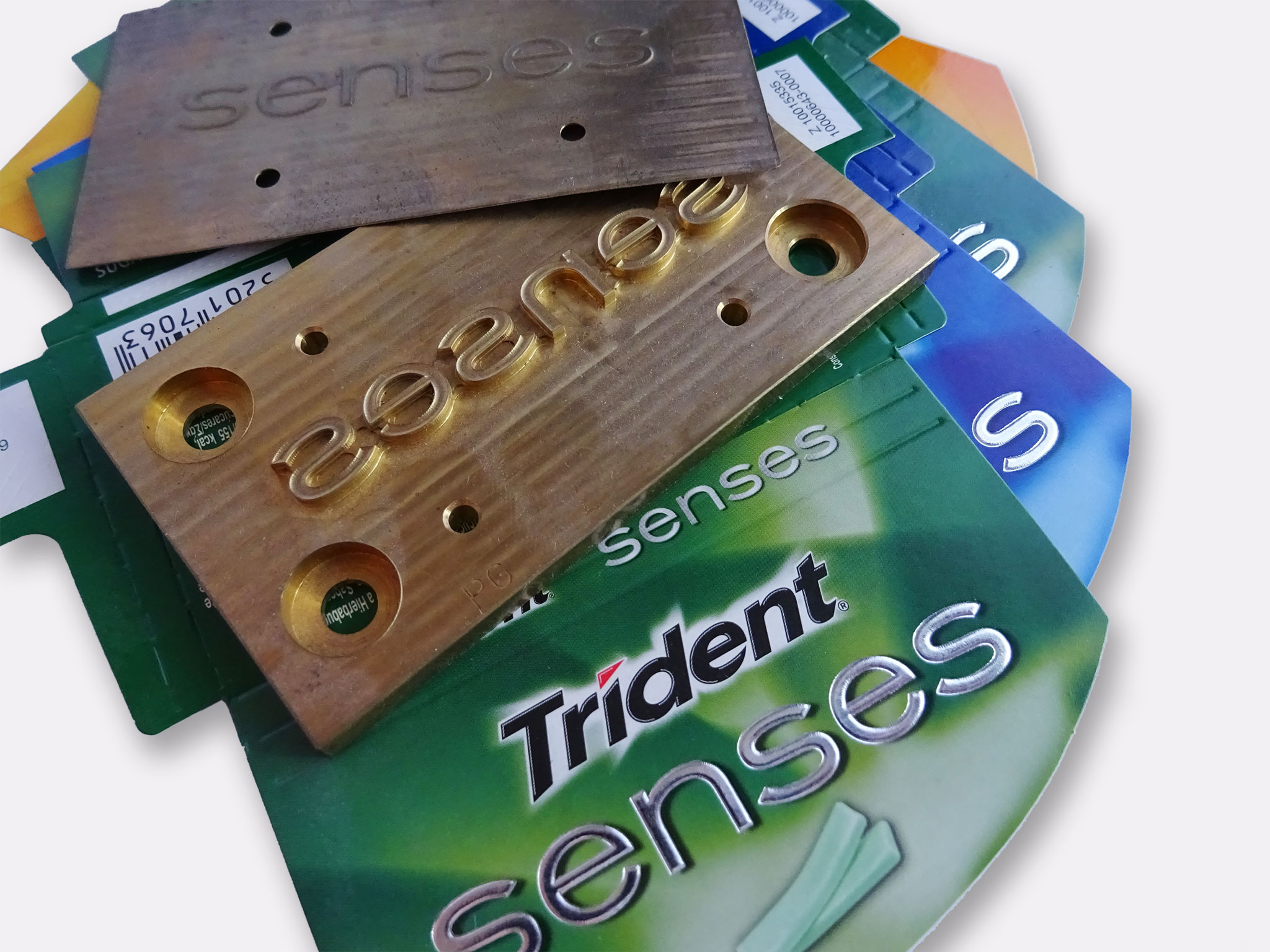

Brass die, high quality material for big printing quantities. Can also be delivered in steel.

Different producing processes:

  • Hand crafted dies
  • CNC produced dies
  • Etched dies where other techniques will not allow required results

Different thickness of material:

Standard is 7mm, other thicknesses on request.
Fixing flanges, mounting holes according to machine type and your requirements.

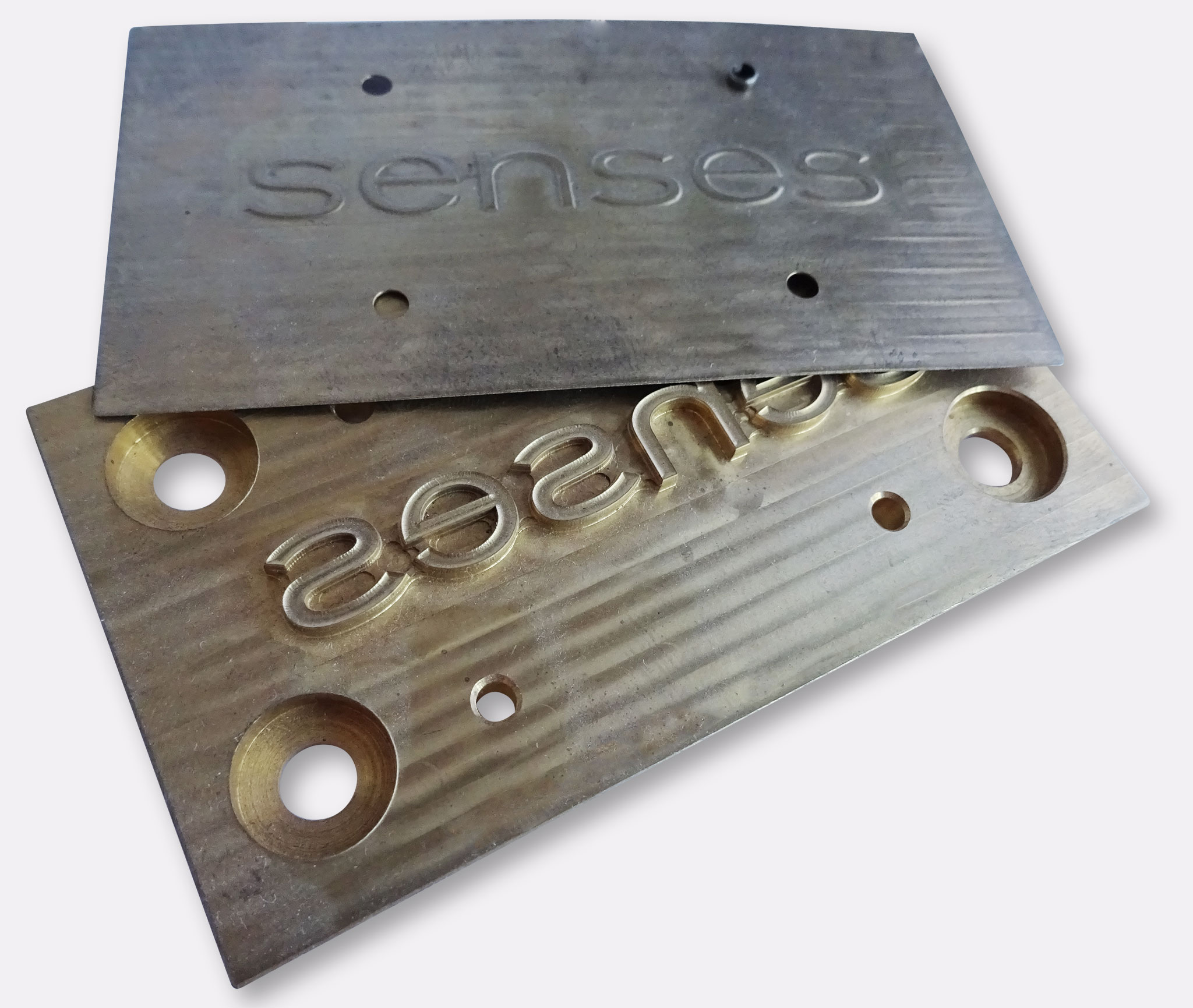

Counter dies and counter die positioning system.

Talking about perfect fitting.

Please tell us the printing temperature. We will compensate the heat extension in consequence. Some kind of materials ask for deeper milling around the die.

Your hints are useful. Negative text elements appear smaller than positive ones. Please consider this fact while creating documents.

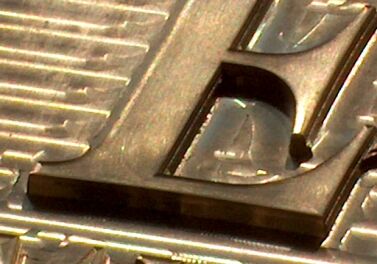

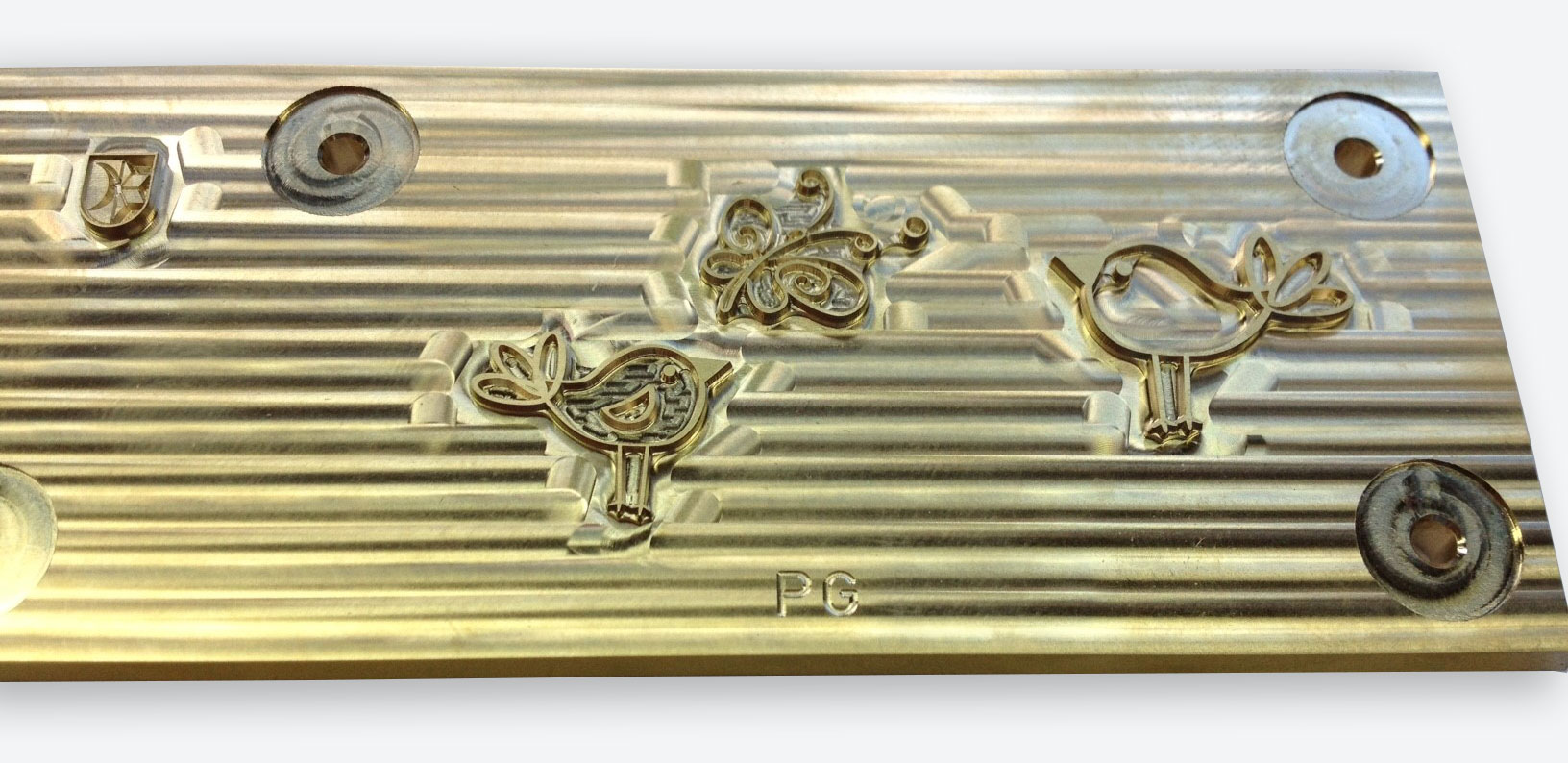

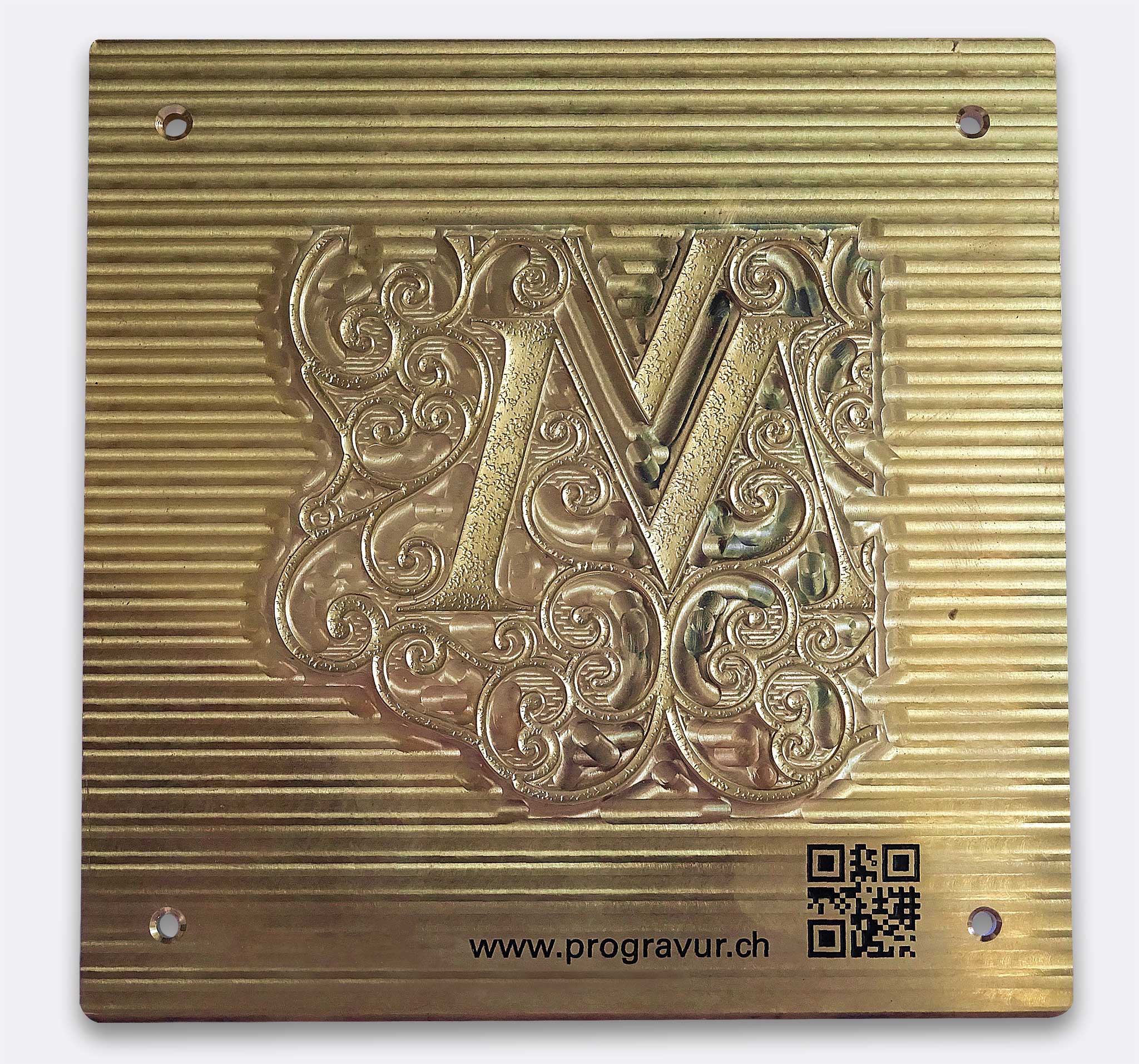

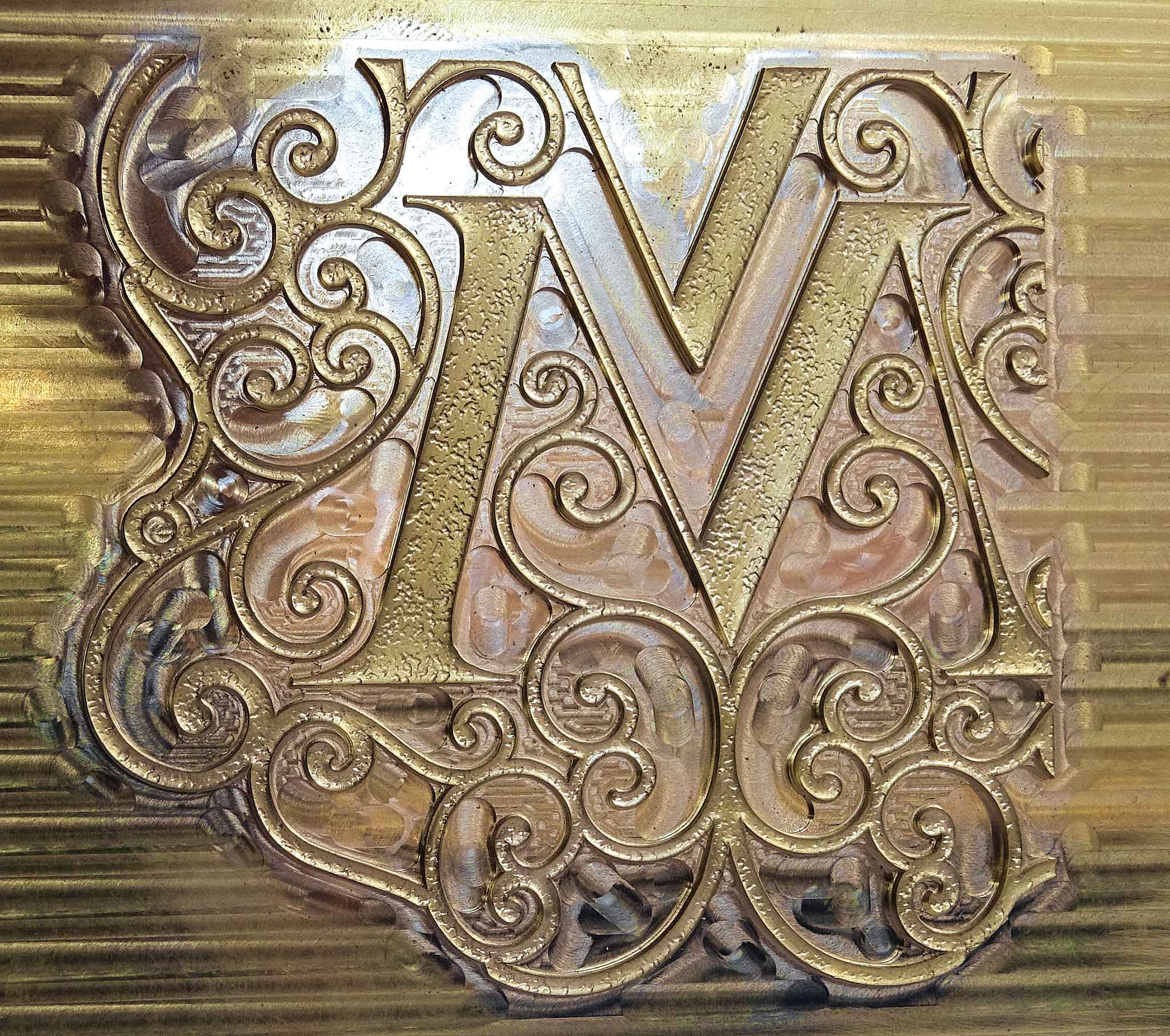

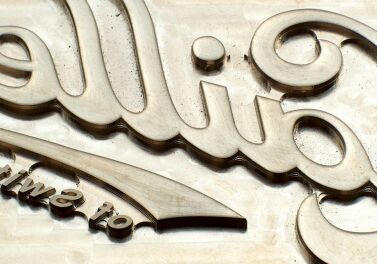

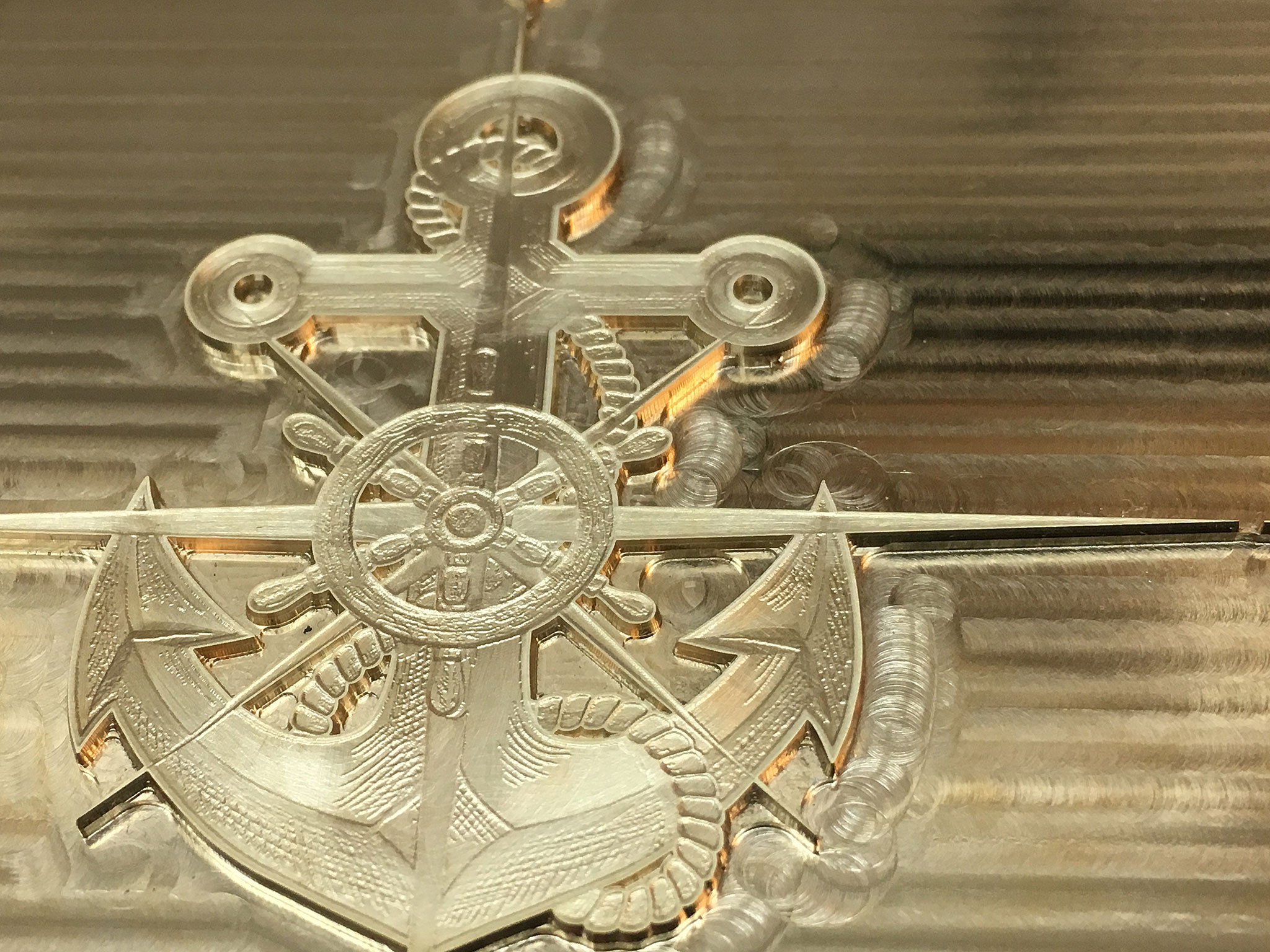

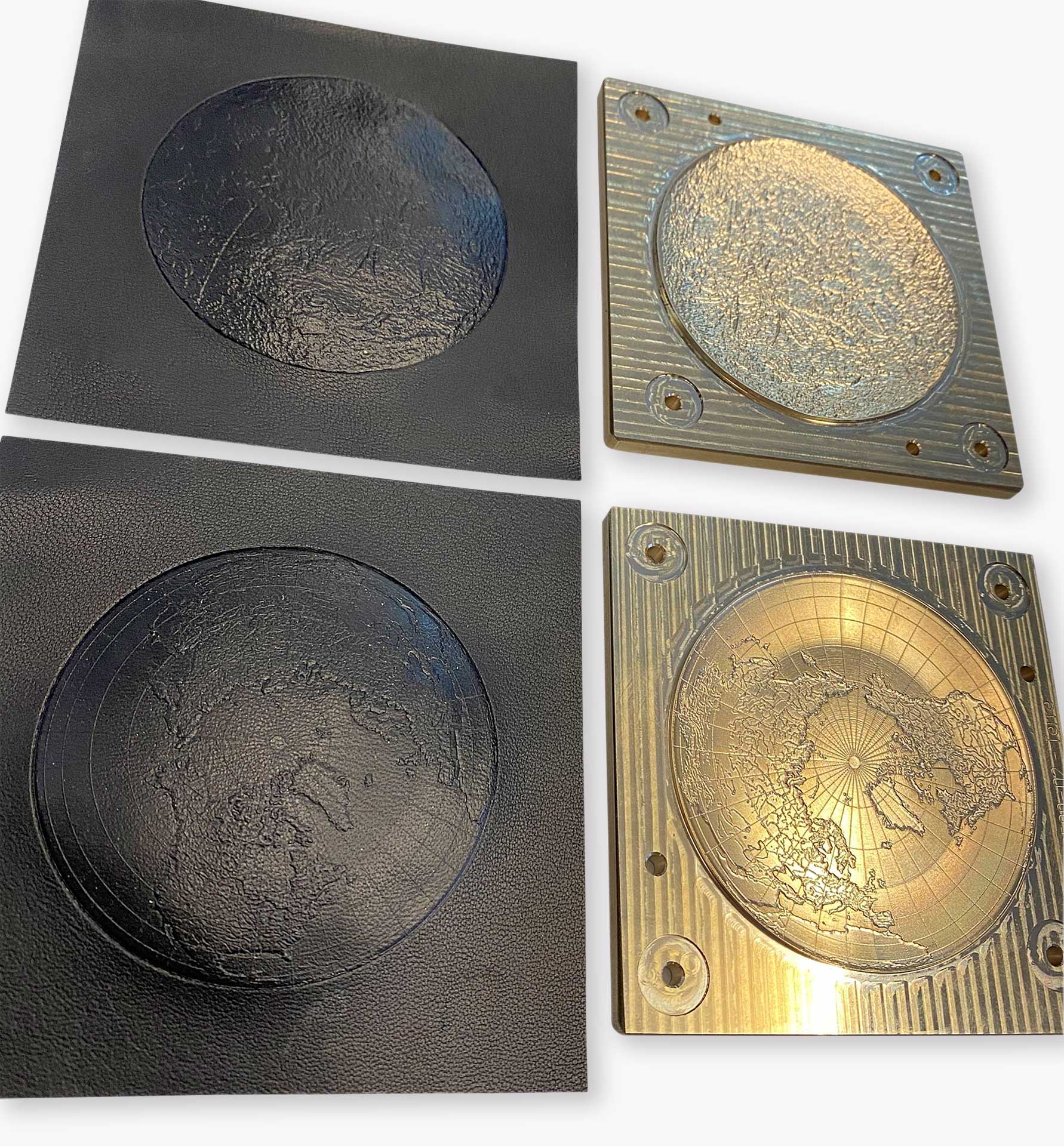

Gallery



1
2
3
4
5
6
7
8
